SSJ-0003 Interior installed inner open screen window

Model No.: SSJ-0003
SSJ-0003 Interior installed inner open screen window


1. Profile

Aluminum alloy profile with 1.2mm thickness.

Original aluminium profile, excellent toughness, long lifetime period.

Profile color: coffee, grey, white, green, champagne, silkwood grain


2. Anti-theft security mesh

Brand: SENRISE, the famous leading brand in window screens in China.

SUS304L stainless steel security screen with 1.6mm thickness, good hardness, high tensile strength, anti collison capability (2.148 ton), 5-year quality warranty period.

3. Hardware

(1) Custom lock hardware: solid and durable, better safety, elegant appearance, 5-year warranty

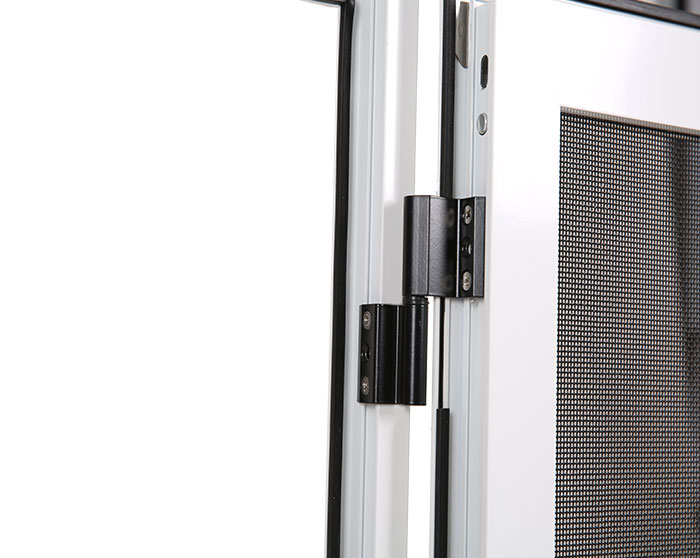

(2) Stainless steel fixed hinges with double wings: open, closed and uninstalled freely, easy to be cleaned, 5-year quality warranty

(3) Znic alloy corner brackets

(4) Aluminium alloy corner brackets

(5) Ultra durable sealing strip

(6) Screen Selection: AkzoNobel (TOP 500) powder coated security screen, color: black, white, dark grey, light grey

4. Specification:

Outer frame width: 39.3mm

Outer frame thickness: 31.2mm

Inner frame width: 66mm

Inner frame thickness: 31.2mm

5. Function

Mosquito proof, anti theft, UV proof, no peeping, anti falling, corrosion resistance

6. Features

● Applying blue-ray anti-fake insured security screens

● It could achieve the smallest size of outer frame and good light transmission under the reasonable frame structure and high tensile strength

● Applying multi lock points design, more stiff and safe, excellent sealing and burglary resistance

● Adopting aluminium corner brackets to make extruded models, compact connection, soild and durable, anti-theft resistance

● Adopting edge folding processing technics, metal extruded strip and screen mesh machine are fixed to avoid stealing, applying fricting hinges, multi lock points to make screen window more safe

● Water discharge rabbet design to prevent rainfall from penetration and ponding matters

 7. Application

Broadly applied to casement windows, window screens is interior installed inner open style
